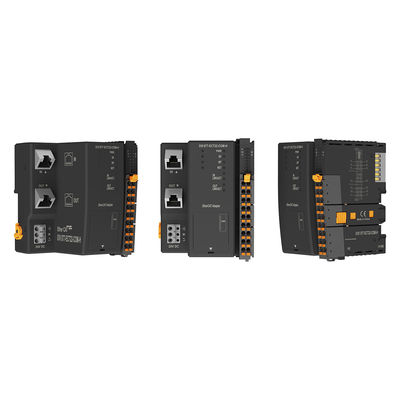

PLC IO Module SM877H serial communication EtherCAT bus coupler IO module expandable to 32 modules

1 unidad
MOQ
Negociable
Precio
PLC IO Module SM877H serial communication EtherCAT bus coupler IO module expandable to 32 modules
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Nombre del producto: Acoplador de comunicación serie 877H
Protocolo: Ethercat
Voltaje de trabajo: La tensión de la unidad de encendido de la unidad de encendido de la unidad de encendido de la unida
Interfaz eléctrica: 2*RJ45
OEM: Aceptar
Escalable: Ampliable hasta 32 módulos
Temperatura de funcionamiento: -20 °C ~ 60 °C
Información básica
Lugar de origen: Cantón, China
Nombre de la marca: Olycom
Certificación: CE
Número de modelo: OM 877-ECT22-COM-H
Pago y Envío Términos
Detalles de empaquetado: 1 pieza en una caja
Tiempo de entrega: 3 ~ 5 días hábiles
Condiciones de pago: T/t, PayPal
Capacidad de la fuente: 5000 unidades/mes
Descripción de producto

PLC IO Module SM877H serial communication EtherCAT bus coupler

 IO module expandable to 32 modules


Product Features of SM877H Serial Communication EtherCAT Bus Coupler


  • 3 RJ45 ports
  • Comes with 6-digit station address dialing code for easy maintenance
  • 2 RS485 or RS232 interfaces
  • Support Modbus RTU and free port protocols
  • The fastest baud rate is 115.2Kbps, stable and reliable
  • Configure serial port parameters on the web page, the master station does not require programming, easy to use.


Specification of EtherCAT  PAL I/O module



Model

SM877H EtherCATserial communication coupler

SM877H Prof inet-RTserial communication coupler

Product Description

3 RJ45 interfaces, 24VDC power supply, stable performance and strong anti-interference performance

Technical Specifications

Product No.

OM 877-ECT22-COM-H

OM 877-PNT22-COM-H

Electrical Interface

RJ45

I/O Power

24VDC(rated), output current10A

Current Consumption

96mA

Cable length (shielded twisted pair)

1000m(Determined by the actual baud rate used)

Bus +5VDC Current Capacity

<2A (If the number of expansion modules exceeds 16, be sure to add an SM898-24D05-H power relay module)

Protocol

EtherCAT Slave Station

Prof inet-RT Slave Station

Slave Station Settings

Address Settings

Configured by DIP switch or assigned by master station

Configured by programming software or assigned by master station

Maximum Number of Stations per Segment

255

Isolation

Between Channel and Bus

Yes

Power to Bus

Yes

The number of I/Os that the Ontology comes with

No

Display Indication

Power +24V green light, BF red light, SF red light, NET red light

System Power Diagnostics and Warnings

Support

Working Environment

Working temperature: -2060℃, relative humidity: 5%90% (non-condensation)

Dimensions (L× W× H)

84*103*82



Ordering Details


Specifications

Product No.

SM877H serial communication coupler, EtherCAT bus, 3 RJ45 ports, WellBUS backplane bus, expandable to 32 modules, 24VDC power supply, with 6-digit dial code to set the station ID address, 2 RS485 or RS232 interfaces, supports Modbus RTU and free port protocols, the terminals are pluggable





OM 877-ECT22-COM-H

SM877H serial communication coupler, Profinet-RT bus, 3 RJ45 ports, WellBUS backplane bus, expandable to 32 modules, 24VDC power supply, 2 RS485 or RS232 interfaces, supports Modbus RTU and free port protocols, the terminals are pluggable



OM 877-PNT22-COM-H


FAQ:


1.Are you a manufacturer?
Yes, we have our production line and R&D team.
Please visit us via below VR link to see our office and production area.
https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html

2. What is the leadtime if I order?
After receiving the payment, we start production.
If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.
If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.

3. How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.

4. What is MoQ?
1 Pc/Pair.
For many models, we have stock, it is easy to send samples for your testing.

5. Can I have a discount?
Yes and it is usually based on quantity and after sample testing.
