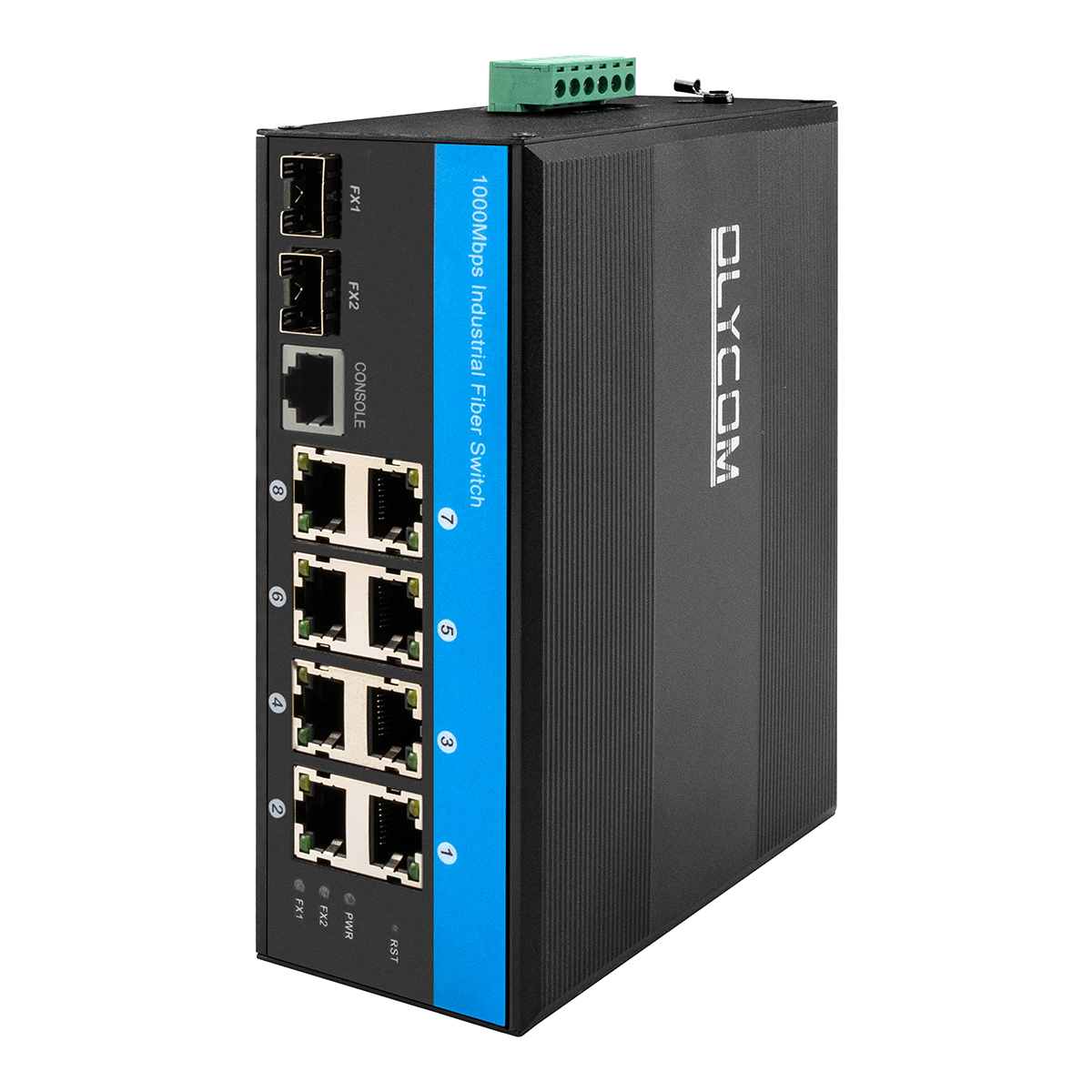

L2 managed network switch Vitesse chipset industrial ethernet switch with 2SFP+8RJ45
Key Features of L2 Managed Network Switch
- 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
- 2 x 1000Mbps SFP fiber port
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
- A store-and-forward switching mechanism

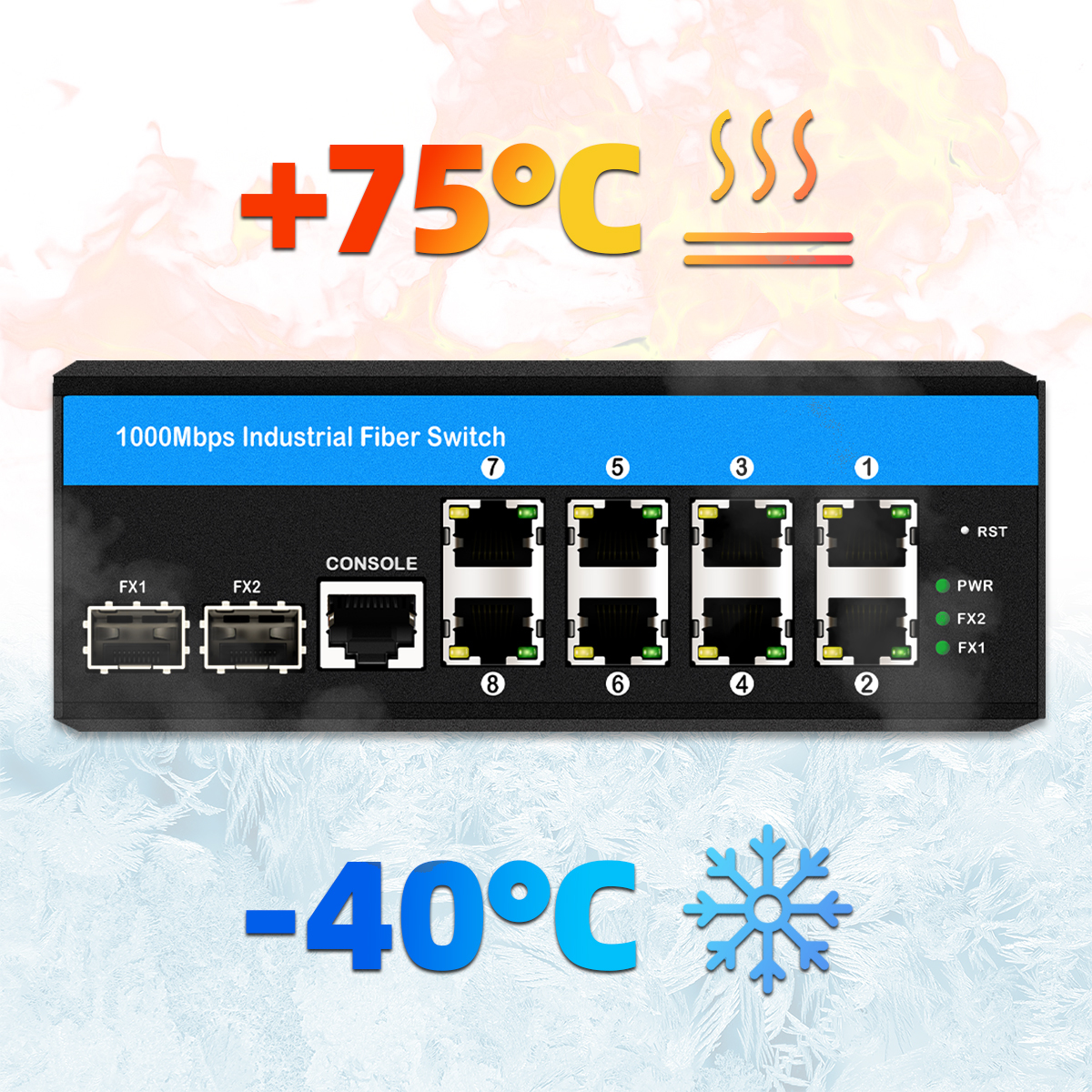

- Operating environment temperature:-40 ° ~75 ° c
Specification of Industrial Ethernet Switch
|
Product Name
|
10/100/1000Mbps Managed Industrial Fiber Switch (2F+8TP)
|
|
Model No.
|
IM-FS280GW
|
|

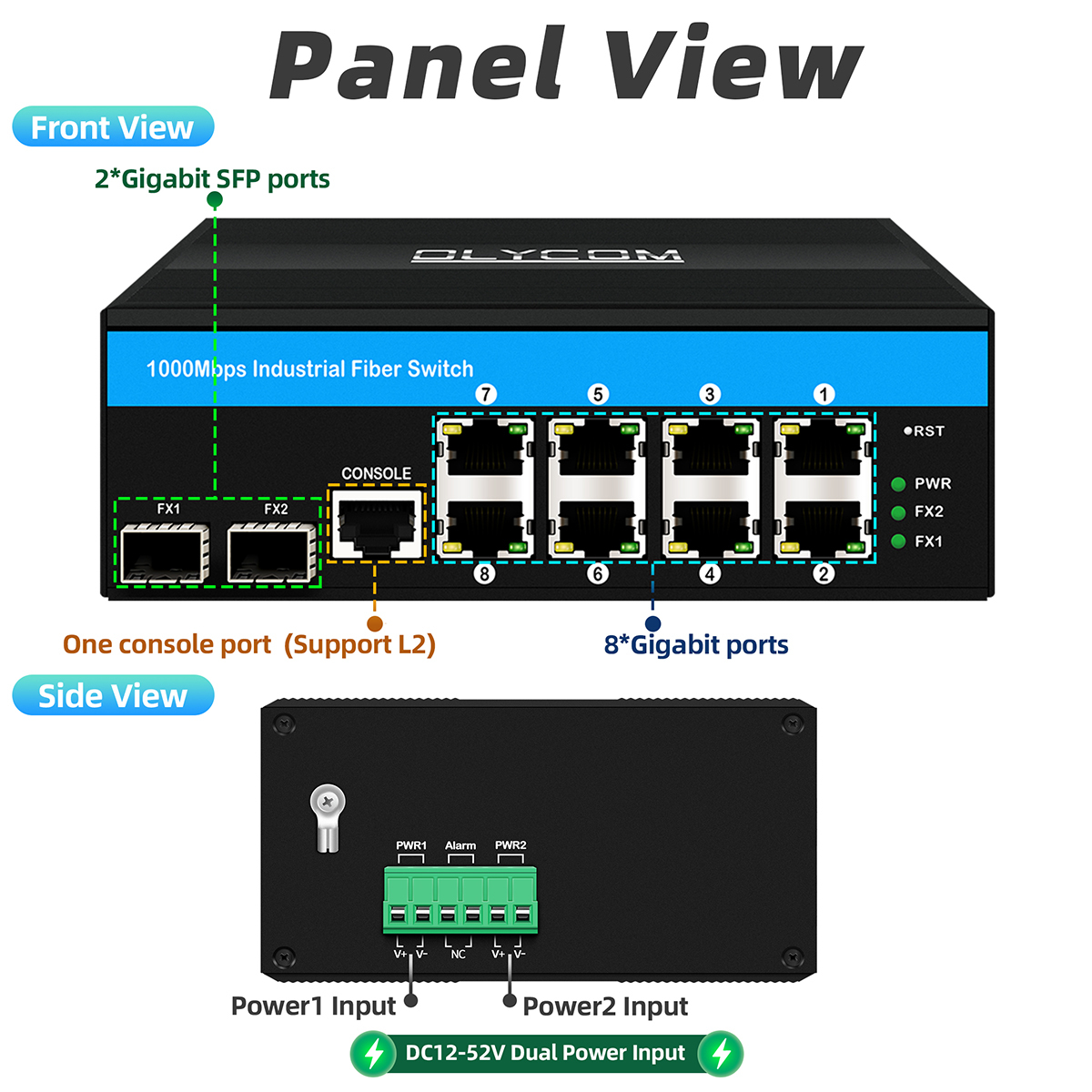

Port
|
2 x 1000Mpbs SFP port
SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
|
Standard
|
IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
|
|
VLAND ID
|
4096
|
|
Jumbo Frame
|
9.6KB
|
|
MAC Address Table Size
|
8K
|
|
Switching features
|
Transmission mode:storage and forward
System bandwidth:58Gbps (non-traffic jam)
DRAM size: 128M Flash size: 16M
Packet buffer size: 4Mb
|
|
Network media
|
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
|
|
LEDs
|
Power, network, fiber
|
|
Power supply
|
Input voltage:DC 12-52V; No-load power:5W;
Reverse connection: support
|
|
Environment
|
Working Temp:-40°～ 75°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing
|
|
Industry Standards
|
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4
|
|
Safety
|
CE Mark ,commercial ; CE/LVD EN60950
|
|

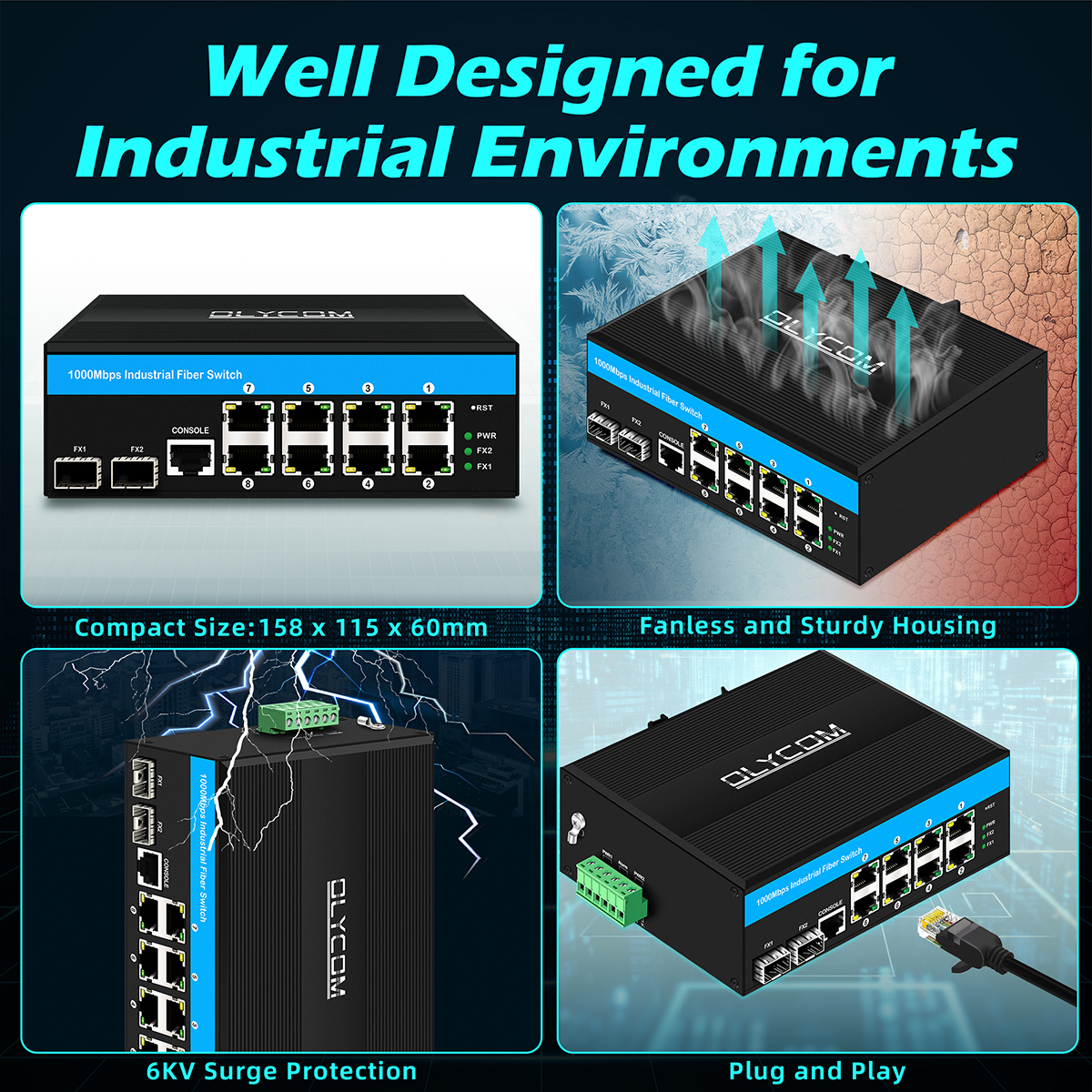

Mechanical information
|
Shell:Corrugated metal shell; Safety class:IP40;
Dimension:158 x 114.8 x 60mm;
Mounting method:Din-rail mounting
|
|
Warranty
|
3 years
|
Application

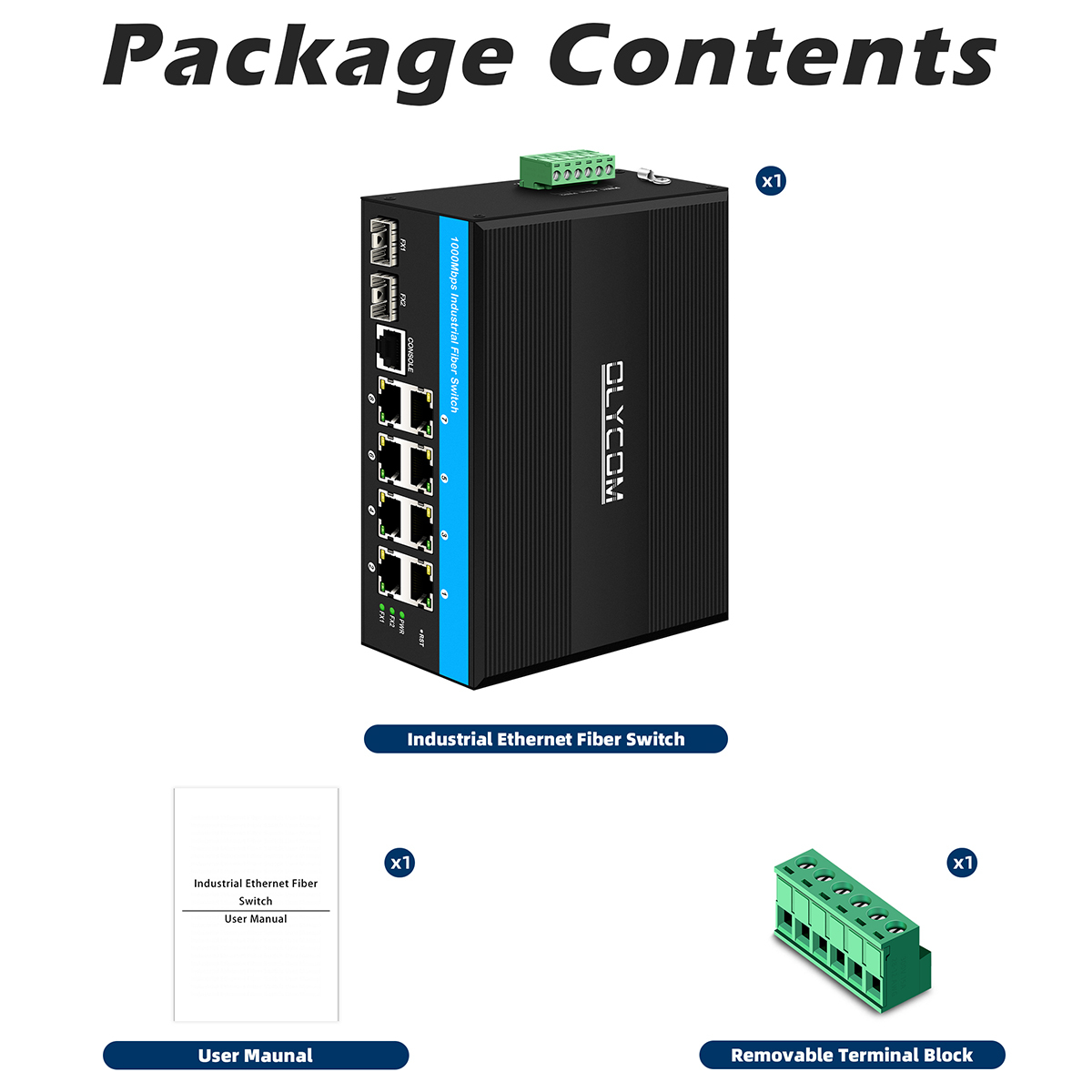

Packing box of Din rail switch:
| PACKING LIST |
CONTENT |
QTY |
UNIT |
| 10-port gigabit uplink industrial switch |
1 |
SET |
| User Manual |
1 |
PC |
| Warranty Card |
1 |
PC |
| Removable Terminal Block |
1 |
PC |
| Note: Industrial Switch does not include the power supply and SFP module. |
FAQ:
1. What is the power input?
A: For non-PoE managed switches, it receives DC12V~52V, for PoE managed switches, it receives DC48V~52V.
All the models support redundant input.
2. What is the PoE budget?
A: The standard PoE output is 30W per port.
Take IM-FP288GW for example, it has 8 PoE ports, so the budget is 30W/port*8 ports=240W.
We can also support 60W output if it is required, please confirm with us.
3. How can I install the device?
A: Each model in this series supports DIN35/Wall mounting.
It requires necessary accessories in installation like screws, mounting kit etc., some of them are included in the packing box, some are not.
4. Does your switch support 155Mb/s tranceivers?
A: Yes, the optical speed is 100M/1000M/2500M. Please just configure 100M speed in the management interface, megabit modules are working.
5. If possible to write the label as I want?
A: Yes, please just send the content and format, and we will print a sample piece for your confirmation.
The label is usually attached to the side panel.
6. Is it possible to print my logo?
A: Yes, it is usually on the top panel of the device.
