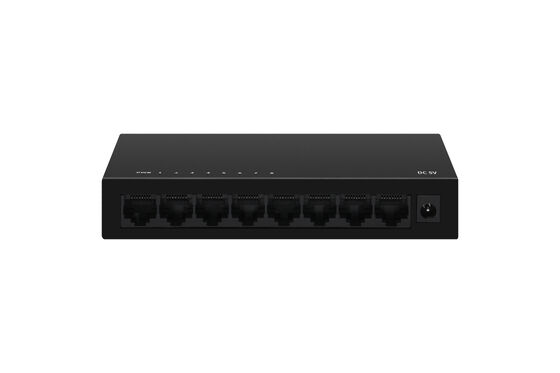

TA708-GE Olycom 8-Port Gigabit Ethernet Switch
Introduction
The TA708-GE 8-Port Gigabit Ethernet Switch is engineered with a high-quality high-speed network intelligent chip, boasting a fan-less mute design that thoroughly eliminates the noise issues common to small switches in office environments.
Equipped with 8 Gigabit RJ45 ports, it enables seamless compatibility with 10/100/1000M Ethernet networks and features an intuitive design for effortless management and maintenance.
This reliable network device is highly versatile, making it an ideal choice for a wide range of scenarios including security network video surveillance, hotel networking, campus infrastructure, and small and medium-sized enterprise network engineering projects.
Specification
|
Product Name
|
8 Port 10/100/1000Mbps Ethernet Switch
|
|
Port
|
8x10/100/1000M UTP RJ45(Support MDI/MDIX, auto-sensing)
|
|
Switching Capacity
|
16Gbps
|
|
Throughput
|
11.9Mpps
|
|
Packet Buffer
|
4M
|
|
MAC Address
|
8K
|
|
Jumbo Frame
|
16Kbytes
|
|
VLAN
|
4K
|
|
Transfer Mode
|
Store and forward
|
|
MTBF
|
100000 hours
|
|
Network Protocol
|
IEEE802.3(10Base-T)
IEEE802.3u(100Base-TX)
IEEE802.3ab(1000Base-TX)
IEEE802.3x(Flow control)
|
|
Industry Standard
|
EMI: FCC Part 15, CISPR(EN55032)class A
EMS: EN61000-4-2(ESD)
EN61000-4-5(Surge)
|
|
Network Medium
|
10Base-T: Cat3, 4, 5 or above UTP(≤100m)
100Base-TX: Cat5 or above UTP(≤100m)
1000Base-TX: Cat5 or above UTP(≤100m)
|
|
Certification
|
CE/FCC/RoHS
|
|
Working Environment
|
Working Temperature: -10℃~50℃
Storage Temperature: -40℃~70℃
Working Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~95%, non-condensing
|
|
Input Voltage
|
DC5V2A
|
|
Power Consumption
|
＜5W
|
|
LED Indicators
|
PWR(Power indicator)
On: power on
Off: no power
Link(Network Link)
On: 10/100/1000M link connection is normal
Blinking: Data transmission is normal
Off: link failure
|
Application
The TA708-GE Ethernet Switch is perfectly suited for IP-based communication systems, providing high-speed, stable gigabit network connectivity to support various IP communication applications such as IP telephony, video conferencing and cloud-based office services, meeting the daily communication and data transmission needs of enterprises, campuses and hotels.
It is also an excellent solution for vehicle network deployments, offering reliable network performance that adapts to the specific connectivity requirements of vehicle-related network systems.
Beyond these core applications, its compact size, low power consumption (less than 5W) and wide working temperature range (-10℃~50℃) make it a practical network component for security video surveillance networks, where it can efficiently support the high-bandwidth data transmission of multiple surveillance cameras, as well as all types of small and medium-sized network engineering projects requiring cost-effective, easy-to-deploy gigabit switching capabilities.
Packing Information
- 1pc switch(neutral device)
- 1pc power adapter(standards vary across countries)
- 1pc user manual(including QIG information)
Shipping box information(Below information is approximately accurate)
Product size: 138*78*25mm
Inner box size: 175*120*63mm
Product weight: 0.24Kg
Packing weight: 0.37Kg
Master box size: 520*335*380mm
Packing quantity: 40Pcs
Packing weight: 15.8Kg
Remark
Accessories(Network cable etc.)are NOT included in the packing box
Power adapter is included in BOTH the packing box AND unit pricing
